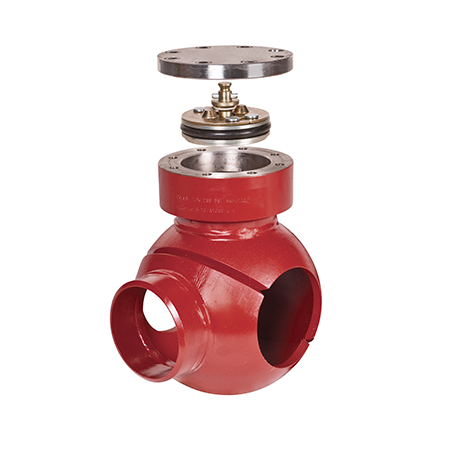

Designed for use with the TDW SHORTSTOPP® plugging machine system, full-encirclement Spherical 3-WAY™ Tees feature a compact, low-profile design that allows for ease of use in the field. Reusable, bolt-on flange adapters allow 4-inch through 12-inch Spherical 3-WAY Tees to be used with SHORTCUTT® and SHORTSTOPP® valves.

Specifications

  • 2-inch through 12-inch
  • Pipe type: Steel
  • ANSI flange class 150
  • ASME design code B31.4, B31.8
  • Maximum working pressure: 20 bar (285 psi) at 38°C (100°F) or 17 bar (245 psi) at 82°C (180°F)
  • Maximum operating temperatures: 82°C (180°F) per ASME B31.4 or 38°C (100°F) per ASME B31.8
  • Fitting type: Spherical, 3-way

Key Features

  • Internally grooved bore engages the leaves of standard completion plugs
  • Bottom half of the tee turns to create either a side or bottom outlet
  • Side or bottom outlet allows for bypass

Common Applications

  • Plugging in-service pipelines

Designed for use with the TDW SHORTSTOPP® plugging machine system, full-encirclement Spherical 3-WAY™ Tees feature a compact, low-profile design that allows for ease of use in the field. Reusable, bolt-on flange adapters allow 4-inch through 12-inch Spherical 3-WAY Tees to be used with SHORTCUTT® and SHORTSTOPP® valves.

Equipment Type

Pressure/ANSI Class

Size

Specifications

  • 2-inch through 12-inch
  • Pipe type: Steel
  • ANSI flange class 150
  • ASME design code B31.4, B31.8
  • Maximum working pressure: 20 bar (285 psi) at 38°C (100°F) or 17 bar (245 psi) at 82°C (180°F)
  • Maximum operating temperatures: 82°C (180°F) per ASME B31.4 or 38°C (100°F) per ASME B31.8
  • Fitting type: Spherical, 3-way

Key Features

  • Internally grooved bore engages the leaves of standard completion plugs
  • Bottom half of the tee turns to create either a side or bottom outlet
  • Side or bottom outlet allows for bypass

Common Applications

  • Plugging in-service pipelines
