Product part numbers may have changed. Please contact your local TDW representative to verify.

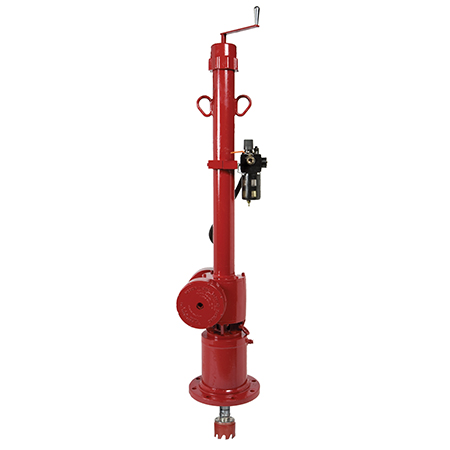

T-203 Tapping Machine
![T203 tapping machine product photo](/sites/default/files/2021-01/TappingMachines-T203.jpg)
Equipment Type
![tapping-machine-icon](/sites/default/files/2020-05/ISO-type-TappingMachine-100ppi_8.png)
Pressure/ANSI Class
![pressure-50-bar](/sites/default/files/2020-06/ISO-Pressure-50-100ppi.png)
Size
![4-12-inches](/sites/default/files/2020-06/ISO-sizes-4-12-100ppi_3.png)
Engineered for durability and precision, the TDW T-203 tapping machine is used primarily for the installation of TDW SHORTSTOPPÒ plugging machines. It also is suitable for a broad range of tapping operations where shutdown is not an option.
Specifications
- 4-inch through 12-inch (DN 100 to DN 300) taps
- Maximum working pressure: 50 bar (740 psi) at 38°C (100°F)
- Operating temperature range: -29°C to 82°C (-20°F to 180°F) at 46 bar (675 psi)
- 36 inches boring bar travel
- Adjustable automatic feed rate: 0 to 1/8-inch per revolution
- Available with air motor or hydraulic systems and TDW power unit
Key Features
- Lightweight with a low center of gravity, it is designed to be easy to handle and to operate
- Box is available for safe storage and handling
Common Applications
- Making pipeline taps for Isolation intervention on distribution network
