Product part numbers may have changed. Please contact your local TDW representative to verify.

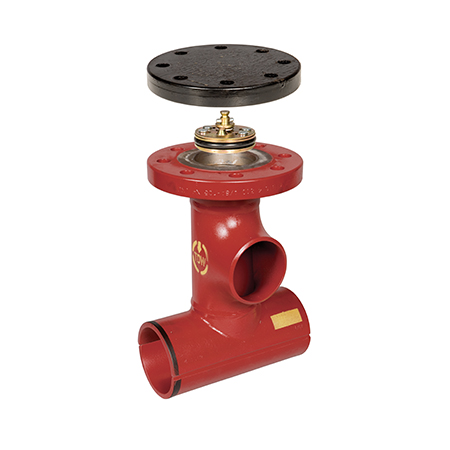

shortstopp-300d-full-encirclement-3-way-tee

Equipment Type

ISO-type-SplitTee3WayFitting-100ppi

Pressure/ANSI Class

ISO-ANSIClass-300-100ppi

Size

ISO-sizes-2-12-100ppi

A low-pressure fitting, the SHORTSTOPP® 300D Full Encirclement 3-WAY™ Tee is used with TDW plugging machines to install permanent bypasses.

Specifications

  • 2-inch through 12-inch
  • Pipe type: Steel
  • ANSI flange class 300
  • ASME design code B31.4, B31.8
  • Maximum allowable operating pressure: 51 bar (740 psi) at 38°C (100°F)
  • Maximum operating pressure: 82°C (180°F) at 47 bar (675 psi)
  • Fitting type: Three-way tee

Key Features

  • Extruded design type
  • Fittings 4-inch and larger are furnished with a flange machined to accept 300D Completion Plugs. The flange is also machined to accept the TDW SHORTPLUG™ with guide bars
  • Fittings undergo radiographic weld inspection in accordance with API Standard 1104
  • Fittings are stamped with a code number for material identification and a painted band to ensure easy alignment in the field

Common Applications

  • Installing permanent bypasses without pipeline shutdown
