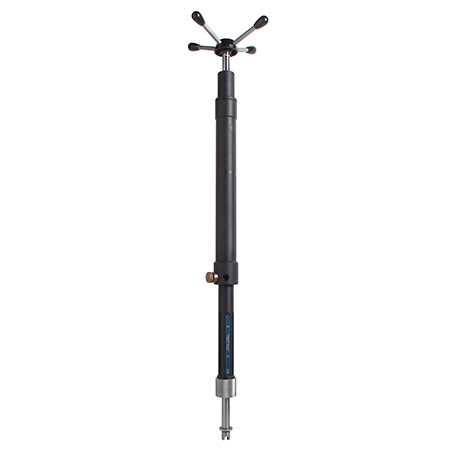

P-101 (formerly PS2000 PE) Tapping Machine
![p101-tapping-machine](/sites/default/files/2021-01/TappingMachines-P101.jpg)
Equipment Type
![tapping-machine-icon](/sites/default/files/2020-05/ISO-type-TappingMachine-100ppi_7.png)
Pressure/ANSI Class
![pressure-10-bar](/sites/default/files/2020-05/ISO-Pressure-10-100ppi_2.png)
Size
![up-to-6-inches](/sites/default/files/2020-06/ISO-sizes-up-to-6-100ppi.png)
Specially design for Polyethylene pipeline hot taps and avoid shut down or squeezing, the P-101 can be used for branch connection or isolation operation.
Specifications
- 2-inch through 4-inch (DN 50 to DN 100) taps
- Maximum working pressure: 10 bar (150 psi) at 38°C (100°F)
- Operating temperature range: -5°C to 45°C (20°F to 110°F) at 10 bar (150 psi)
- 20-inch boring bar travel (exist also with 36 inches boring bar travel)
- Fixed feed rate : 0.04-inch per revolution (Fast approach feed rate : 1.4-inch per revolution)
- Available with manual crank
Key Features
- Lightweight design
- Box is available for safe storage and handling
Common Applications
- Making pipeline taps for tie-in or isolation intervention on distribution network
