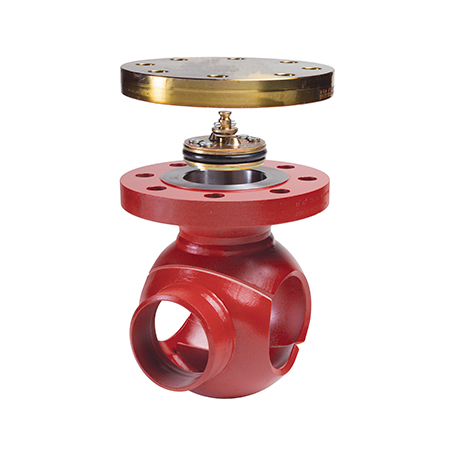

SHORTSTOPP® 300D Spherical 3-WAY™ Tee Fitting

shortstopp-spherical-300d-spherical-3-way-tee

Equipment Type

ISO-type-Spherical3wayFitting-100ppi

Pressure/ANSI Class

ISO-ANSIClass-300-100ppi

Size

ISO-sizes-2-12-100ppi

Featuring a bottom half that can be rotated for a side or bottom outlet, the SHORTSTOPP® 300D Spherical 3-WAY™ Tee works with all TDW SHORTSTOPP plugging machines.

Specifications

  • 2-inch through 12-inch
  • Pipe type: Steel
  • ANSI Class 300
  • ASME B31.4, B31.8
  • Maximum allowable operating pressure: 31 bar to 51 bar (456 psi to 740 psi) at -29°C to 38°C (-20°F to 100°F)
  • Maximum operating pressure: 82°C (180°F) at 51bar (740 psi)
  • Fitting type: Spherical

Key Features

  • Machined to accept 300D Completion Plugs
  • Can be installed horizontally
  • Stamped with a code number for material identification
  • Quality-control measures include inspection to ensure a proper fit on the pipeline, flange alignment verification and radiographic weld inspection to API Standard 1104

Common Applications

  • Temporary plugging while installing a permanent bypass
