Product part numbers may have changed. Please contact your local TDW representative to verify.

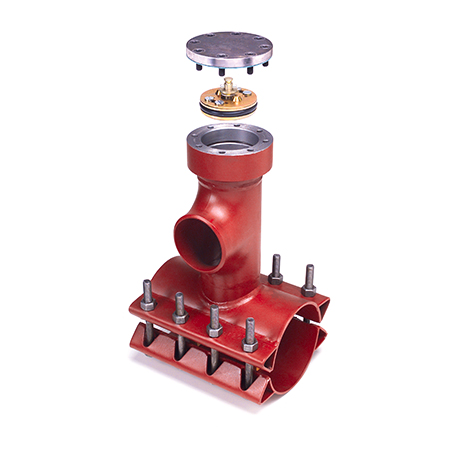

SHORTSTOPP® Bolt-on 3-WAY™ Tee Fitting

shortstopp-bolt-on-3-way-tee

Equipment Type

ISO-type-SplitTee3WayFitting-100ppi

Pressure/ANSI Class

ISO-ANSIClass-150-100ppi

Size

ISO-sizes-2-12-100ppi

Designed for use with SHORTSTOPP® plugging machines and TDW tapping machines, the SHORTSTOPP® Bolt-On 3-WAY™ Tee eliminates the need to install a valve on the connection during pipeline maintenance activities. These versatile fittings are suitable for a wide range of pipe material, including cast iron, ductile iron and steel.

Specifications

  • 2-inch through 12-inch
  • Pipe type: Steel
  • ANSI class 150
  • ASME design code B31.8
  • Maximum operating pressure: 4 bar (58 psi) at 51°C (150°F)
  • Fitting type: 3-way tee

Key Features

  • Side outlet can be plugged with TDW SHORTSTOPP® plugging machine equipment at pressures as high as 4 bar (60 psi)
  • Available in top seal or circumferential end seal design for fitting-to-main attachment
  • Fittings have a broad range of nominal pipe sizes and can allow for significant variances in actual outside diameters of pipe
  • 2-inch and 3-inch sizes have threaded equipment connections
  • 4-inch through 12-inch versions can accommodate TDW SHORTCUTT® valves

Common Applications

  • Completing hot tapping and plugging projects, including tie-ins, crossovers, main re locations, bypasses and line extensions
