Product part numbers may have changed. Please contact your local TDW representative to verify.
mechanical-short-sleeve-steel-fitting

Equipment Type

ISO-type-SplitTeeFitting-100ppi

Pressure/ANSI Class

ISO-ANSIClass-150-100pp

Size

ISO-sizes-2-100ppi

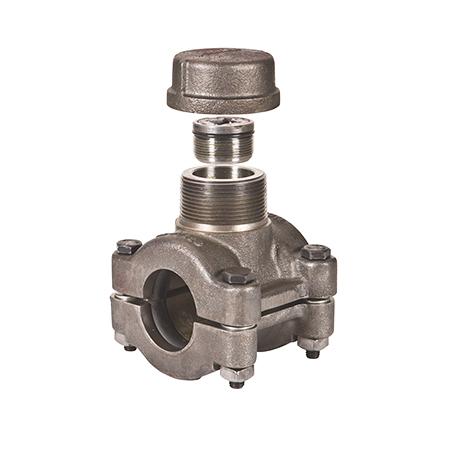

Designed for use on 2-3/8-inch OD steel pipe, Mechanical SHORTSLEEVE™ fittings provide a continuous seal around the pipe with no welding required.

Specifications

  • 2-inch
  • ANSI class 150
  • Pipe type: Steel
  • Maximum operating pressure: 12 bar (175 psi) at 150°C (66°F)
  • Maximum operating pressure: 82°C (180°F) at 11 bar (165 psi)
  • Maximum recommended plugging pressure 4 bar (60 psi)
  • Fitting type: Split tee

Key Features

  • Compatible with the TDW SHORTSTOPP® plugging machine system
  • Can be used as a tapping fitting to install branch connections

Common Applications

  • Hot tapping and plugging
  • Installing branch connections

Designed for use on 2-3/8-inch OD steel pipe, Mechanical SHORTSLEEVE™ fittings provide a continuous seal around the pipe with no welding required.

Equipment Type

Pressure/ANSI Class

Size

Specifications

  • 2-inch
  • ANSI class 150
  • Pipe type: Steel
  • Maximum operating pressure: 12 bar (175 psi) at 150°C (66°F)
  • Maximum operating pressure: 82°C (180°F) at 11 bar (165 psi)
  • Maximum recommended plugging pressure 4 bar (60 psi)
  • Fitting type: Split tee

Key Features

  • Compatible with the TDW SHORTSTOPP® plugging machine system
  • Can be used as a tapping fitting to install branch connections

Common Applications

  • Hot tapping and plugging
  • Installing branch connections
