Product part numbers may have changed. Please contact your local TDW representative to verify.
860-tapping-machine

Equipment Type

tapping-machine-icon

Pressure/ANSI Class

pressure-100-bar

Size

4-20-inches

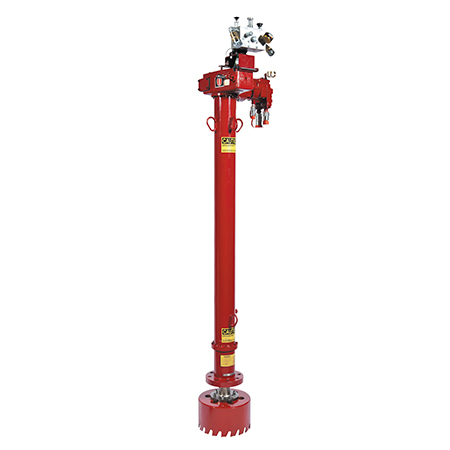

Engineered for a wide variety of applications and environments where pipelines cannot be shut down, the TDW 860 tapping machine   can be used for hot taps and for setting completion plugs, including LOCK-O-RING® and LOCK-O-RING Plus.

Specifications

  • 4-inch through 20-inch (DN 100 to DN 500) taps
  • Maximum working pressure: 100 bar (1,480 psi) at 38°C (100°F)
  • Maximum operating pressure: 50 bar (740 psi) at 38°C (100°F)
  • Operating temperature range: -29°C  to 371°C (-20°F to 700°F) at 48 bar (700 psi) for intermittent service
  • Maximum continuous rating: 177°C (350°F) at 70 bar (1,025 psi)

Key Features

  • LOCK-O-RING® bypass gauge
  • Speed control without changing power unit RPM
  • The tapping machine power unit is compliant with EPA Tier 4 emission standards, has a four-point lift system and an emergency air shut-off valve
  • Convenient storage with tapping machine atop power unit

Common Applications

  • Making hot taps on pipes, tanks and storage vessels in preparation for plugging machine operations
