Product part numbers may have changed. Please contact your local TDW representative to verify.

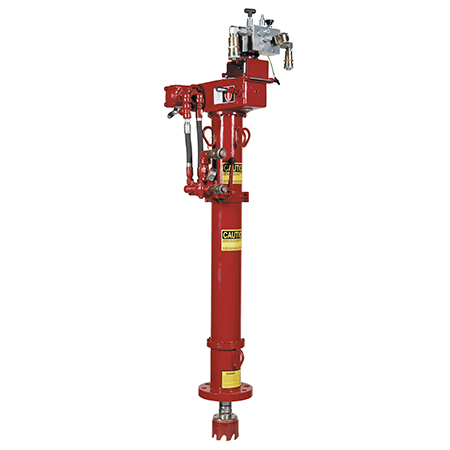

660 Tapping Machine shown on a plain white background

Equipment Type

tapping-machine-icon

Pressure/ANSI Class

pressure-100-bar

Size

3-12-inches

Engineered for a wide variety of applications and environments where pipelines cannot be shut down, the TDW 660 tapping machine can be used for hot taps and for setting completion plugs, including LOCK-O-RING® and LOCK-O-RING Plus.

Specifications

  • 3-inch through 12-inch (DN 80 to DN 300) taps.
  • Maximum working pressure: 100 bar (1,480 psi) at 38°C (100°F).
  • Operating temperature range: -29°C to 371°C (-20°F to 700°F) at 48 bar (700 psi) for intermittent service.
  • 42 inches boring bar travel.
  • Fixed feed rate: 0.003-inch per revolution. (exist also with 0.003-inch/rev).
  • Available with air motor or hydraulic systems and TDW power unit.


Key Features

  • Split frame design that lowers maintenance costs and provides ease of packing replacement.
  • Skid is available for safe storage and handling.
  • The use of fly wheel reduce stress on machine gears and improve performance.

Common Applications

  • Making pipeline and tank taps for tie-in or Isolation intervention.
  • Setting completion plugs.
