Product part numbers may have changed. Please contact your local TDW representative to verify.
shortstopp-bolt-on-fitting

Equipment Type

ISO-type-SplitTeeFitting-100ppi

Pressure/ANSI Class

ISO-ANSIClass-150-100ppi

Size

ISO-sizes-2-12-100ppi

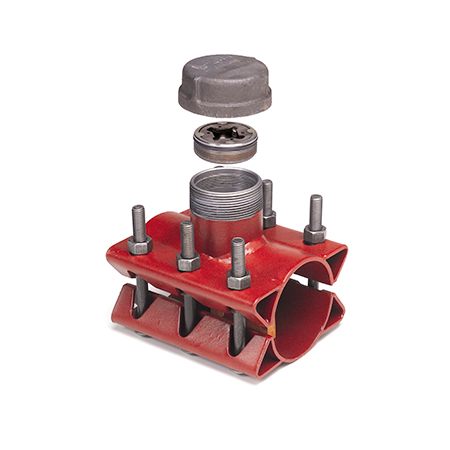

Highly versatile SHORTSTOPP® Bolt-On Fittings are compatible with a wide range of pipe materials including pipe steel, ductile iron and cast iron.

Specifications

  • 2-inch through 12-inch
  • Pipe type: Steel
  • ANSI class 150
  • ASME design code B31.8
  • Maximum operating pressure: 4 bar (58 psi) at 51°C (150°F)
  • Fitting type: Split tee

Key Features

  • Fittings have a broad range of nominal pipe sizes and can allow for broad variances in actual outside diameters of pipe
  • 2-inch and 3-inch sizes have threaded equipment connections and are made of ASTM A-106 Grade B steel
  • 4-inch through 12-inch versions use a flange adapter and can be made of ASTM A-105 if required
  • 4-inch through 12-inch versions can accommodate TDW SHORTCUTT® valves
  • Can be supplied in a top seal or circumferential end seal design for the fitting-to-main attachment

Common Applications

  • Performing tie-ins, lateral connections, extensions, crossovers, repairs and main relocations without pipeline shutdown
