Product part numbers may have changed. Please contact your local TDW representative to verify.
shortstopp-740-purge-equilization-fitting

Equipment Type

welded-fitting-icon

Pressure/ANSI Class

ISO-ANSIClass-300-100ppi

Size

ISO-sizes-2-100ppi

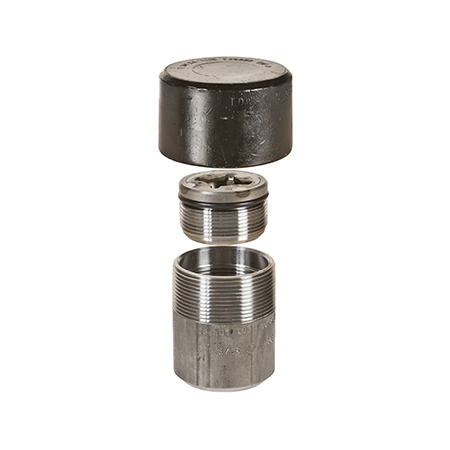

The SHORTSTOPP ® 740 Purge and Equalization Fitting is engineered for new construction and for blowdown connections on either side of a block valve. It allows taps to be made without shutdown using the TDW T-101 Drilling Machine or the 360 Tapping Machine.

Specifications

  • 2-inch
  • Pipe Type: Steel
  • ANSI class 150 and 300
  • Maxiumum allowable operating pressure: 51 bar (740 psi)
  • Maximum operating pressure: 82°C (180°F)
  • Fitting type: Welded

Key Features

  • Accepts corrosion-test coupons, thermometer wells, gauge adapters and other instrument probes
  • Plugs can be set using either the T-101 Drilling Machine or the SHORTSTOPP 500 Completion Machine
  • Comprises cap, plug, 0-ring and nipple

Common Applications

  • Purging and equalization during plugging operations on pipelines and piping systems
  • Completing blowdown of isolated pipe sections following a double SHORTSTOPP operation
  • Instrumentation taps

The SHORTSTOPP ® 740 Purge and Equalization Fitting is engineered for new construction and for blowdown connections on either side of a block valve. It allows taps to be made without shutdown using the TDW T-101 Drilling Machine or the 360 Tapping Machine.

Equipment Type

Pressure/ANSI Class

Size

Specifications

  • 2-inch
  • Pipe Type: Steel
  • ANSI class 150 and 300
  • Maxiumum allowable operating pressure: 51 bar (740 psi)
  • Maximum operating pressure: 82°C (180°F)
  • Fitting type: Welded

Key Features

  • Accepts corrosion-test coupons, thermometer wells, gauge adapters and other instrument probes
  • Plugs can be set using either the T-101 Drilling Machine or the SHORTSTOPP 500 Completion Machine
  • Comprises cap, plug, 0-ring and nipple

Common Applications

  • Purging and equalization during plugging operations on pipelines and piping systems
  • Completing blowdown of isolated pipe sections following a double SHORTSTOPP operation
  • Instrumentation taps
