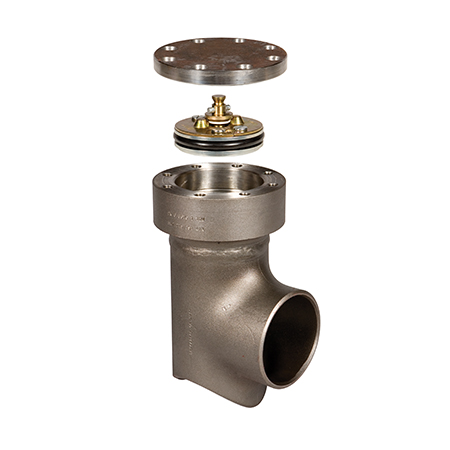

SHORTSTOPP® 3-WAY™ Tee Fitting

shortstopp-3-way-tee

Equipment Type

welded-fitting-icon

Pressure/ANSI Class

ansi-class-150

Size

ISO-sizes-1oneqtr-12-100ppi


Compatible with the TDW SHORTSTOPP® plugging machine, high-performance SHORTSTOPP 3-WAY™ tees are engineered for a wide range of maintenance and repair applications.

Specifications

  • 1 ¼-inch through 12-inch
  • Pipe type: Steel
  • ANSI flange class 150
  • ASME B31.4, B31.8
  • Maximum allowable operating pressure:  2 bar to 20 bar (175 psi to 285 psi) per ASME B31.8
  • Maximum operating pressure: 20 bar (285 psi) at 38°C (100°F) or 17 bar (245 psi) at 82°C (180°F) per ASME B31.4
  • Fitting type: Welded

Key Features



  • Offered in size-on-size configurations
  • Sizes 1 ¼-inch through 3-inch are threaded
  • Sizes 4-inch through 12-inch are flanged
  • Sizes 1 ¼-inch through 2-inch are forged ASTM A-105 carbon steel
  • The 3-inch size is ASTM A-234 Grade WPB steel
  • Sizes 4-inch through 12-inch are either fabricated from ASTM A-106 Grade B or ASTM A-234 Grade WPB steel
  • Can be delivered with Guide Bar plug

Common Applications

  • Relocating mains
  • Tying in equipment
  • Extending lines
  • Making crossovers and lateral connections
