d-2000-quick-actuating-closure

One of the most critical operations in pigging is opening the closure that provides access to the pig trap during launch and recovery operations. When the closure door is opened during the insertion or removal of a pig or other tool, there is a risk of explosive gas-air mixture.

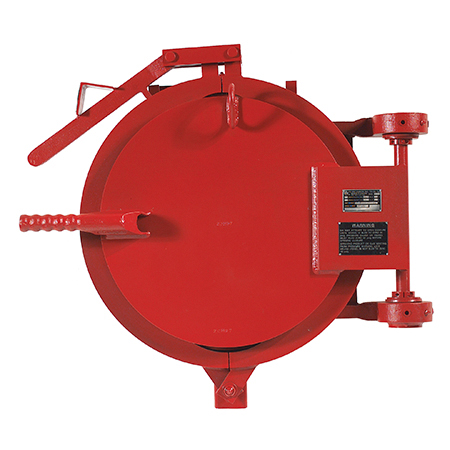

The industry’s most trusted closure for 20 years, the D2000 quick-actuating closure combines operator safety with ease of operation. After depressurization, opening and closing operations are performed in a fast, single motion, with the operator standing safely to the side. Thus, the D2000 closure maximizes efficiency and reduces both, personal operator risk and company operational cost.

The ProSeries™ Advantage means the D2000 closure meets more specifications and codes standard, and lead time is shorter, too.

Specifications

  • 4-inch through 30-inch
  • 32-inch through 48-inch
  • .5 and .6 design factors
  • CSA Z662 Category II
  • ASME B31.4/31.8
  • Standard ASME BPVC Sec. VIII DIV 1 U-Stamp on door
  • -45°C to +121° C (-50°F to +250°F)

Key Features

  • A pressure warning lock, in accordance with UG-35 of ASME Sect. VIII, Div. 1, alerts the operator to the existence of internal pressure prior to opening the closure
  • A large cross-sectional diameter O-ring located on the periphery of the D2000 closure’s barrel collar provides positive sealing as well as protection from damage by tools, pigs or debris
  • Left and right hand opening doors and flange option available as a standard product
  • Optional safety feature - side-screw assist for 24 to 30 inch closures

Common Applications

  • Providing safe access to pig traps, filters, strainers, scrubbers, heat exchangers and other vessels
