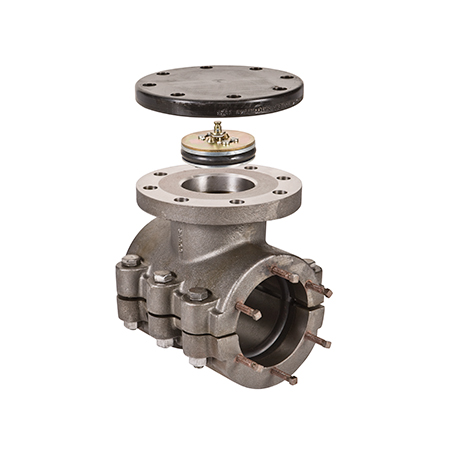

Designed for use on cast iron pipe, Mechanical SHORTSLEEVE™ fittings have circumferential and longitudinal sealing elements that provide a continuous seal around the pipe.

Specifications

  • 4-inch through 12-inch
  • Pipe type: Cast iron
  • ANSI flange class 125
  • Maximum operating pressure: 12 bar (175 psi) at 150°C (66°F)
  • Maximum operating temperature: 82°C (180°F) at 11bar (165 psi)
  • Fitting type: Split Tee

Key Features

  • Compatible with the TDW SHORTSTOPP® plugging machine system
  • Use as a tapping fitting to install branch connections
  • Available with optional blind flange, studs, nuts, gaskets and completion plug

Common Applications

  • Repairing and replacing damaged sections of cast iron mains
  • Installing branch connections
